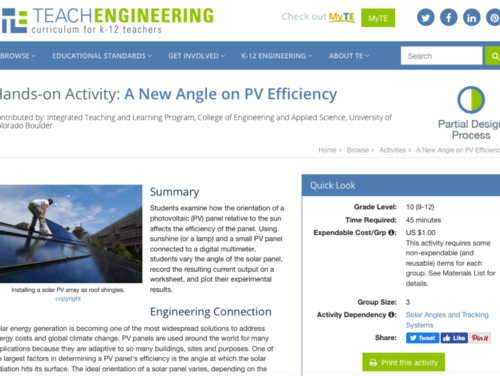

A New Angle on PV Efficiency

In this hands-on activity, students examine how the orientation of a photovoltaic (PV) panel -- relative to the position of the sun -- affects the energy-efficiency of the panel.

Go To:

William Surles
Jack Baum
Stephen Johnson
Abby Watrous
Eszter Horanyi
Schaefer Zarske
Malinda
University of Colorado; Boulder

Notes From Our Reviewers

The CLEAN collection is hand-picked and rigorously reviewed for scientific accuracy and classroom effectiveness. Read what our review team had to say about this resource below or learn more about how CLEAN reviews teaching materials

Teaching Tips

Teaching Tips

Activity does not specify what zenith angle at which to place the lamp if using a lamp instead of the sun. If using a lamp, students could go outside and measure the zenith angle of the sun at that moment. This can also foster a conversation about how the sun's angle varies over the course of a day and over the course of a year. Here's one article that explains more about calculating the best slope angle and azimuth (position) angle for solar panels: [link http://cleantechnica.com/2015/11/12/what-is-the-best-angle-for-solar-pan....

Using the knowledge and skills gained here, students can design a theoretical solar array for the school building, taking into account the geographic location, roof configuration, and weather. This activity may be combined with [link https://www.teachengineering.org/view_activity.php?url=collection/csm_/a... 'Renewable Energy Living Lab: The Bright Idea'].

Safety issues and troubleshooting tips are included in the activity.
